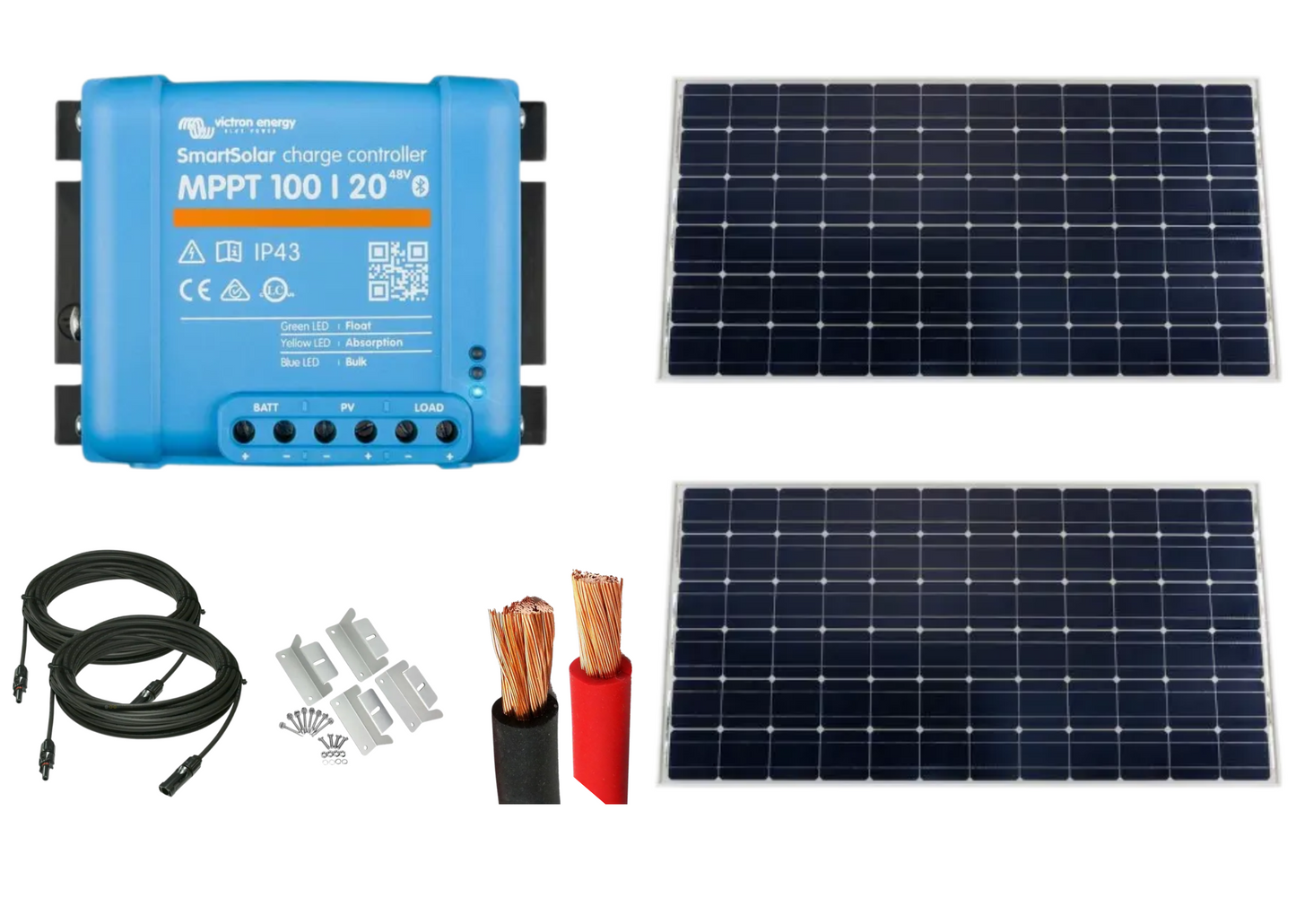

Victron 350W Off Grid Mono Solar Panel Kit with MPPT 100/20 Camper/Caravan/Boat

Off Grid Solar Panel Kit.

Ideal for Campers, Caravans and Boats.

Sold in kit form to be installed by the buyer.

We are certified victron installers, contact us for installation quotes.

Kit contains the below products:

• 2 x SPM041751200, Victron Energy Solar Panel 12V 175W Mono series 4a
• 1x SCC110020160R, Victron Energy SmartSolar MPPT 100/20
• 2x SCA000500000, Victron Energy Solarcable L=5m/4sqmm MC4-M/F
• 2x Solar Panel Z Bracket Mounting Aluminium Fixing Set
• 5m Red Battery Cable 16mm2
• 5m Black Battery Cable 16mm2

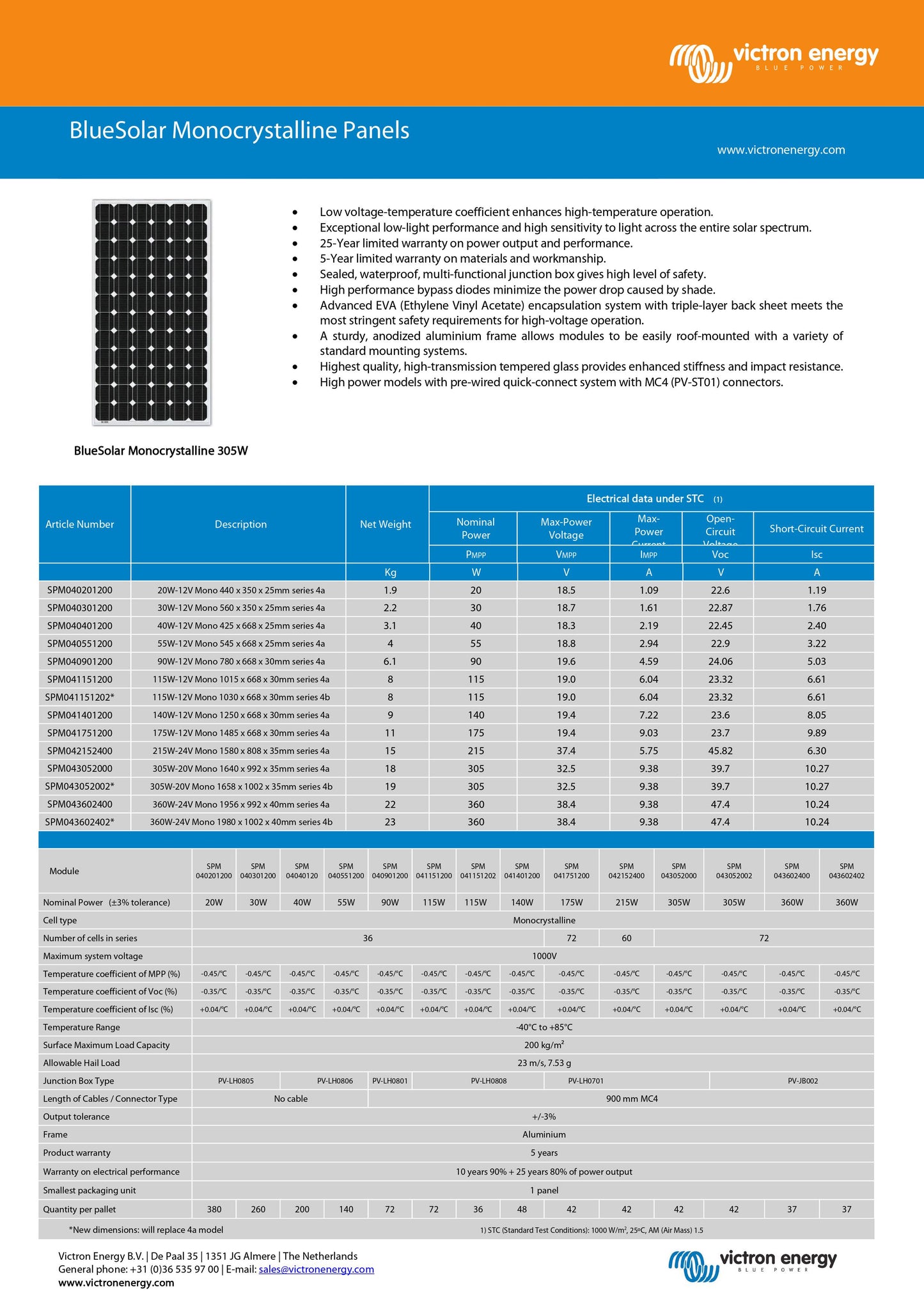

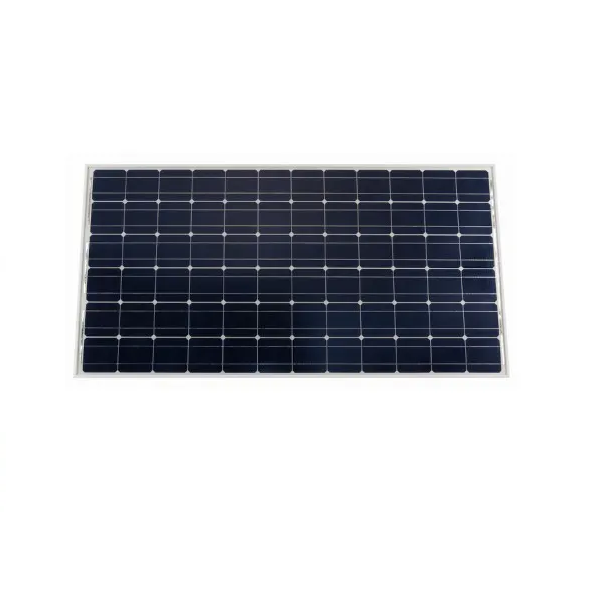

Victron Energy Solar Panel 12V 175W Mono series 4a

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

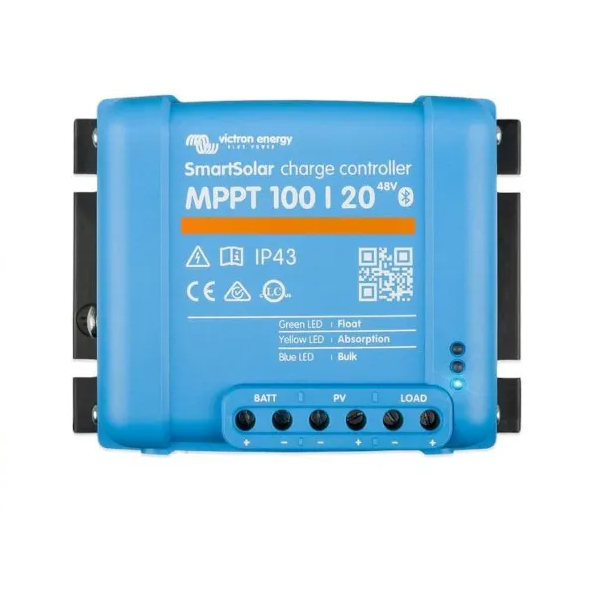

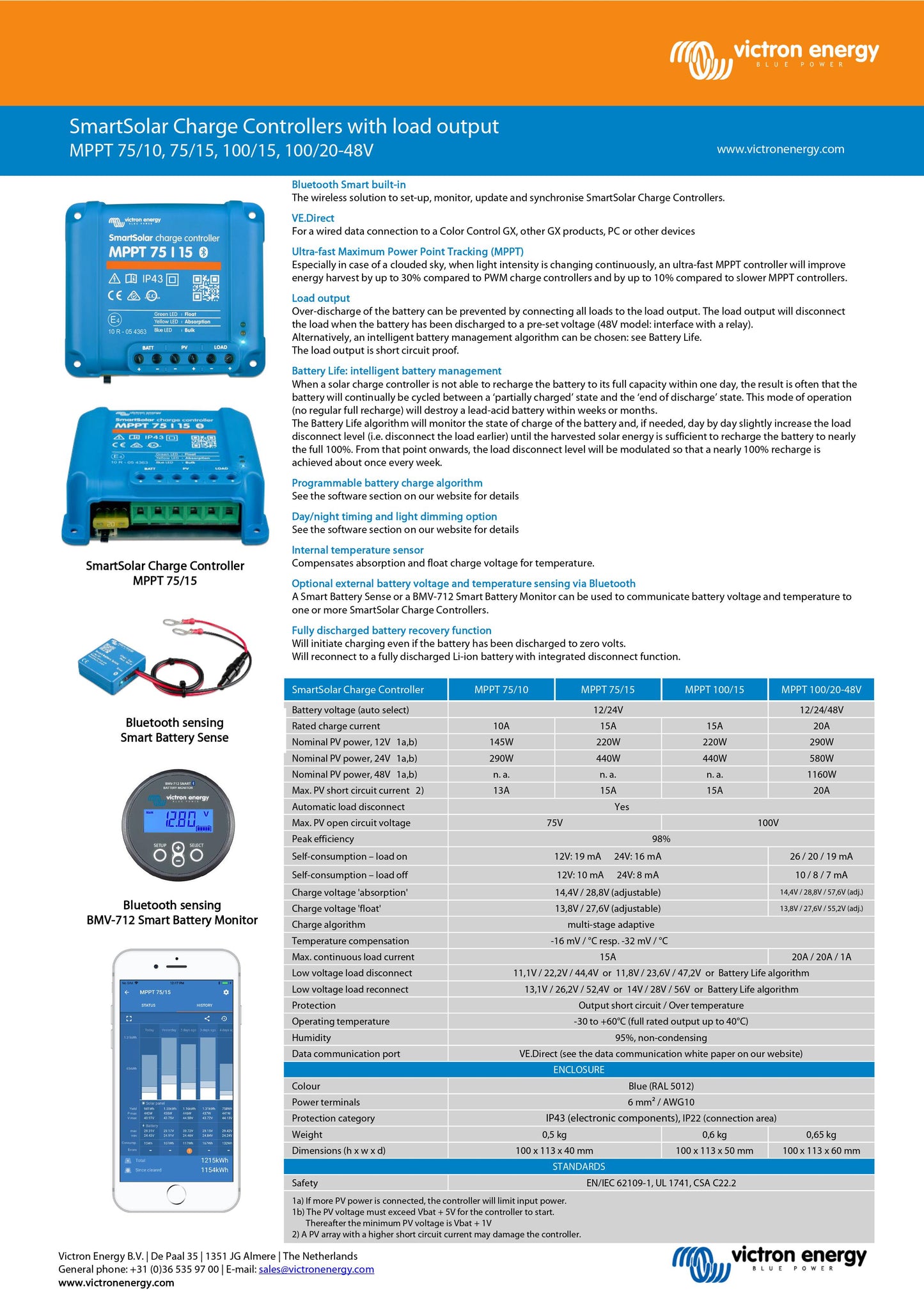

Victron Energy SmartSolar MPPT 100V 20A

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• Bluetooth Smart built-in
• VE.Direct
• Ultra-fast Maximum Power Point Tracking (MPPT)
• Battery Life: intelligent battery management
• Programmable battery charge algorithm
• Day/night timing and light dimming option
• Internal temperature sensor
• Optional external battery voltage and temperature sensing via Bluetooth
• Fully discharged battery recovery function

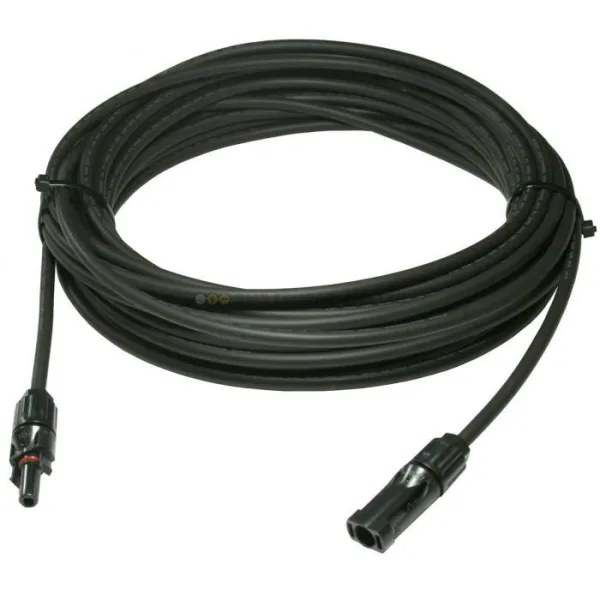

Victron Energy Solarcable L=5m/4sqmm MC4-M/F

5m/4spmm MC4-M/F of Solarcable

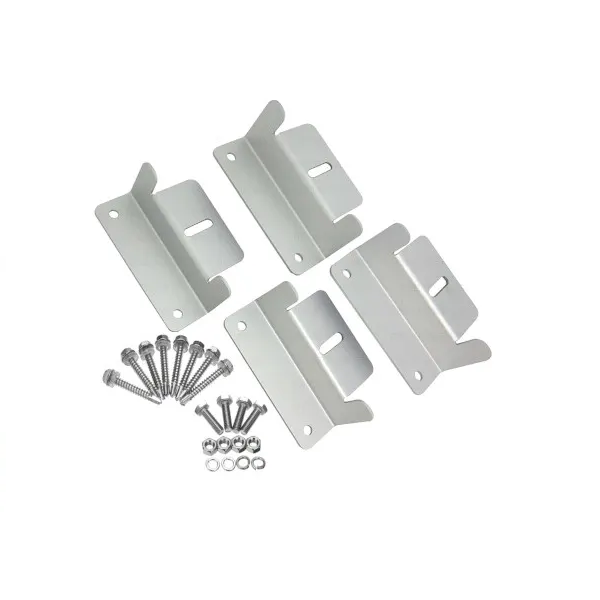

Z Bracket Mounting Aluminium Fixing Set

These brackets are made from 2mm aluminium

Set Includes:

• 4x Z-Shape Tabbed Solar Panel Brackets
• 8x Stainless Steel Self Tapping Screws
• 4x Stainless Steel Spring Washers
• 4x Stainless Steel Short Bolts
• 4x Stainless Steel Washers
• 4x Stainless Steel Nuts
