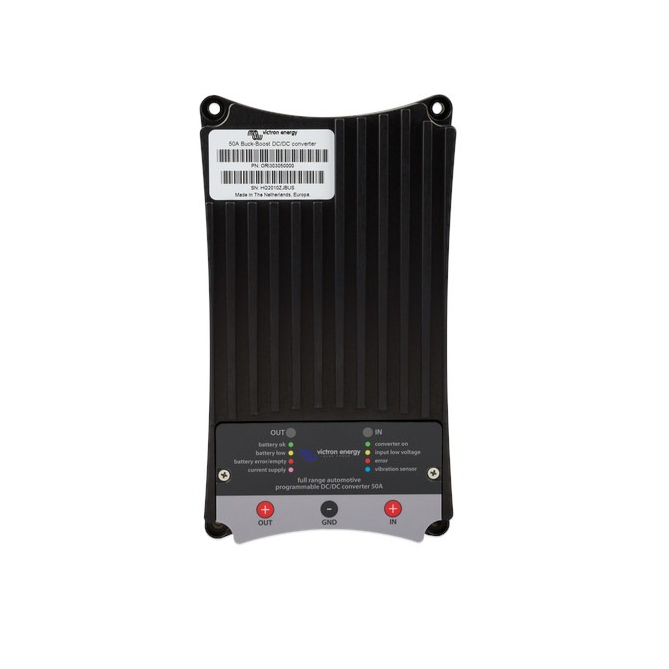

Victron Energy DC-DC Converter Buck Boost 50A

Victron Energy DC-DC Converter Buck Boost 50A

£550.00 GBP
£550.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 1 left

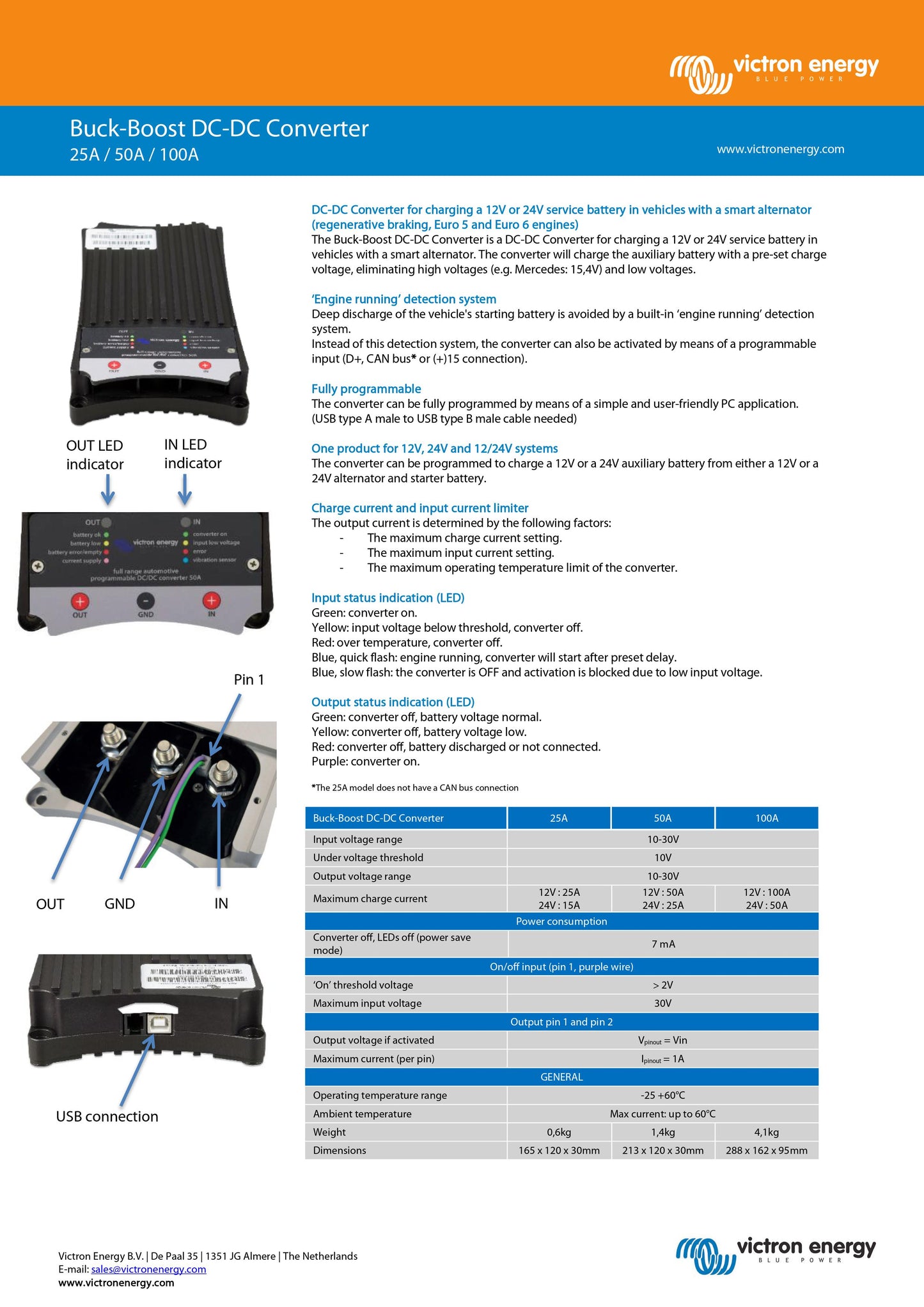

DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines).
The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages.
‘Engine running’ detection system
Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection system.
Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).
Fully programmable
The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed).
One product for 12V, 24V and 12/24V systems
The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.
Charge current and input current limiter
The output current is determined by the following factors:
The maximum charge current setting
The maximum input current setting
The maximum operating temperature limit of the converter

Specifications

  • GTIN: 8719076023128
  • Voltage: 12/24V
  • Cont. Output Current: 50A
  • Bluetooth Enabled: No
  • Dimensions: H213 x W120 x D30mm
  • Weight: 1.4Kg
  • Warranty: 5 Years
  • Country of Manufacture: Netherlands

ORI303050000
