Victron Solar Panel Kit 175W, 100Ah Leisure Battery, MPPT 75/15 for Camper Carav

Off Grid Solar Panel Kit.

Ideal for Campers, Caravans and Boats.

Sold in kit form to be installed by the buyer.

We are certified victron installers, contact us for installation quotes.

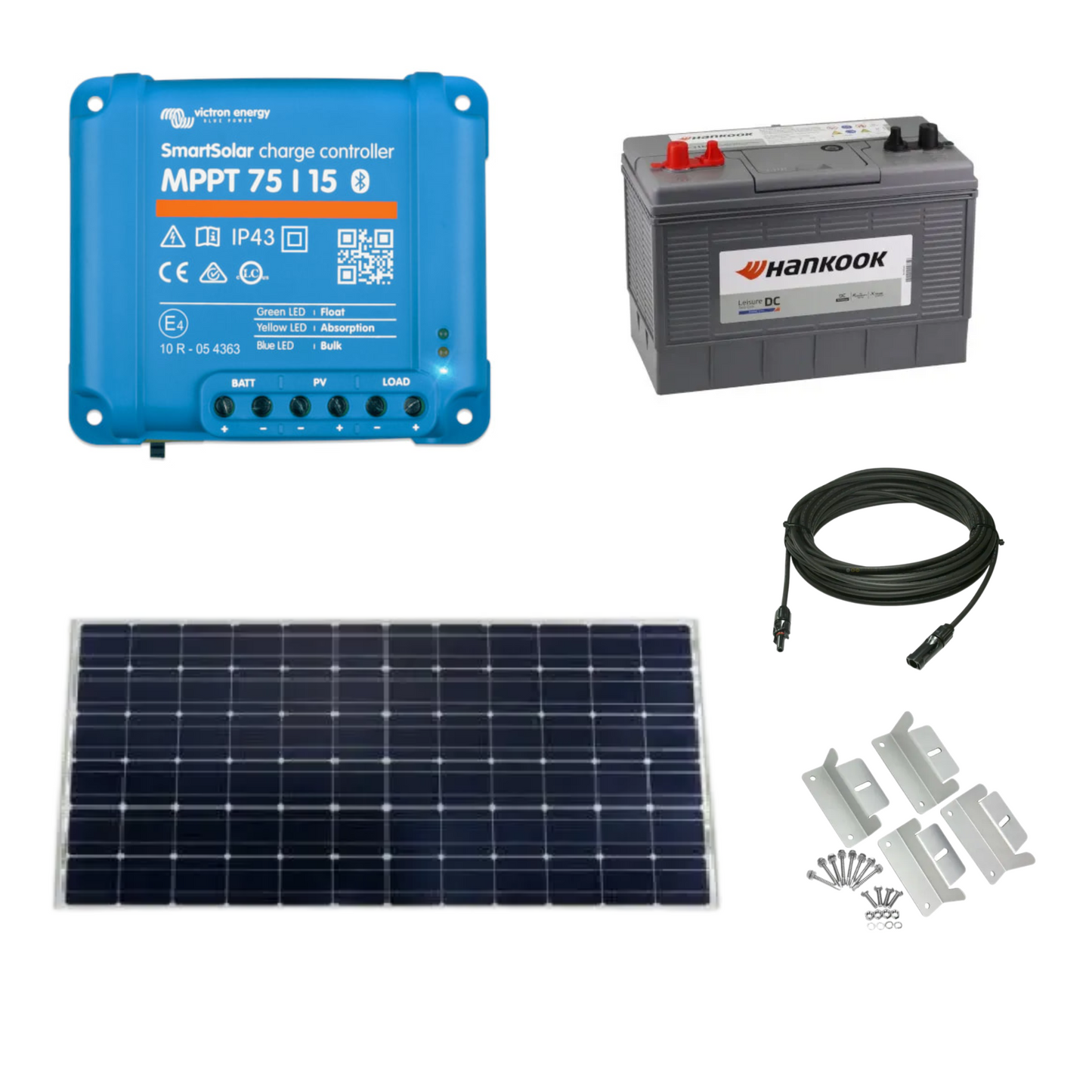

Kit contains the below products:

• 1 x Hankook DC31 Deep Cycle Leisure Battery
• 1 x Victron Energy SmartSolar MPPT 75/15 - SCC075015060R
• 1 x Victron Energy Solar Panel 12V 175W Mono series 4a - SPM041851200
• 1 x Victron Energy Solarcable L=5m/4sqmm MC4-M/F - SCA000500000
• 1 x Solar Panel Z Bracket Mounting Aluminium Fixing Set

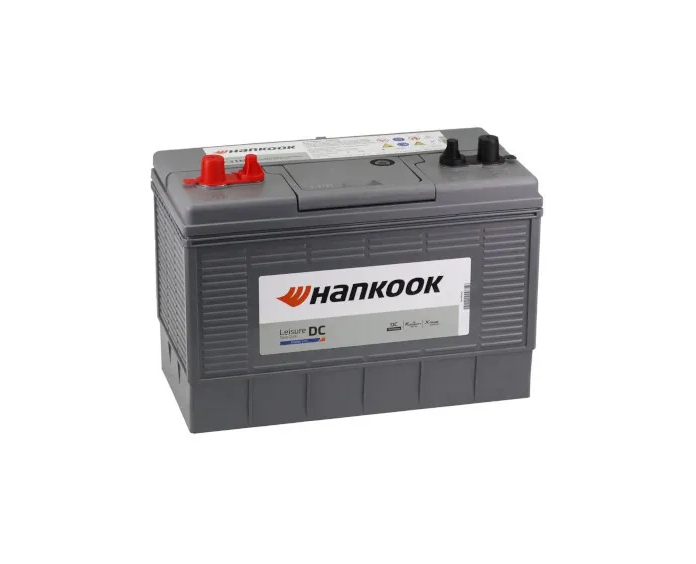

Hankook DC31 Deep Cycle Leisure Battery

This heavy duty deep cycle battery is designed to meet the needs of leisure and marine vehicles. With its sealed calcium construction which makes it 100% maintenance free this battery is fast becoming a favourite within the industry. This range is suited to seasonal use such as Caravans Motorhomes Boats RV Camping and much more.

The product is supplied charged and ready to fit.

Features

• X-Frame - full framed grid design restrains grid growth and short-circuits. Benefit: Upgraded quality and longer life span equalling reliability
• Thicker calcium coated plates with high density active material
• Strong carry handle for installation
• Vibration resistant design with reinforced container
• Unique designed grid for electric flow which ensures high electric conductivities and strong adhesion of active materials. Benefit: Providing higher starting power stable structure and few corrosion.

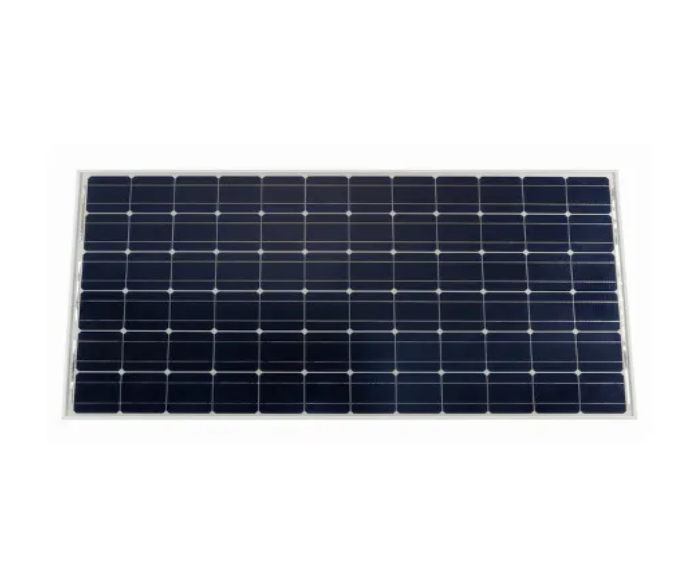

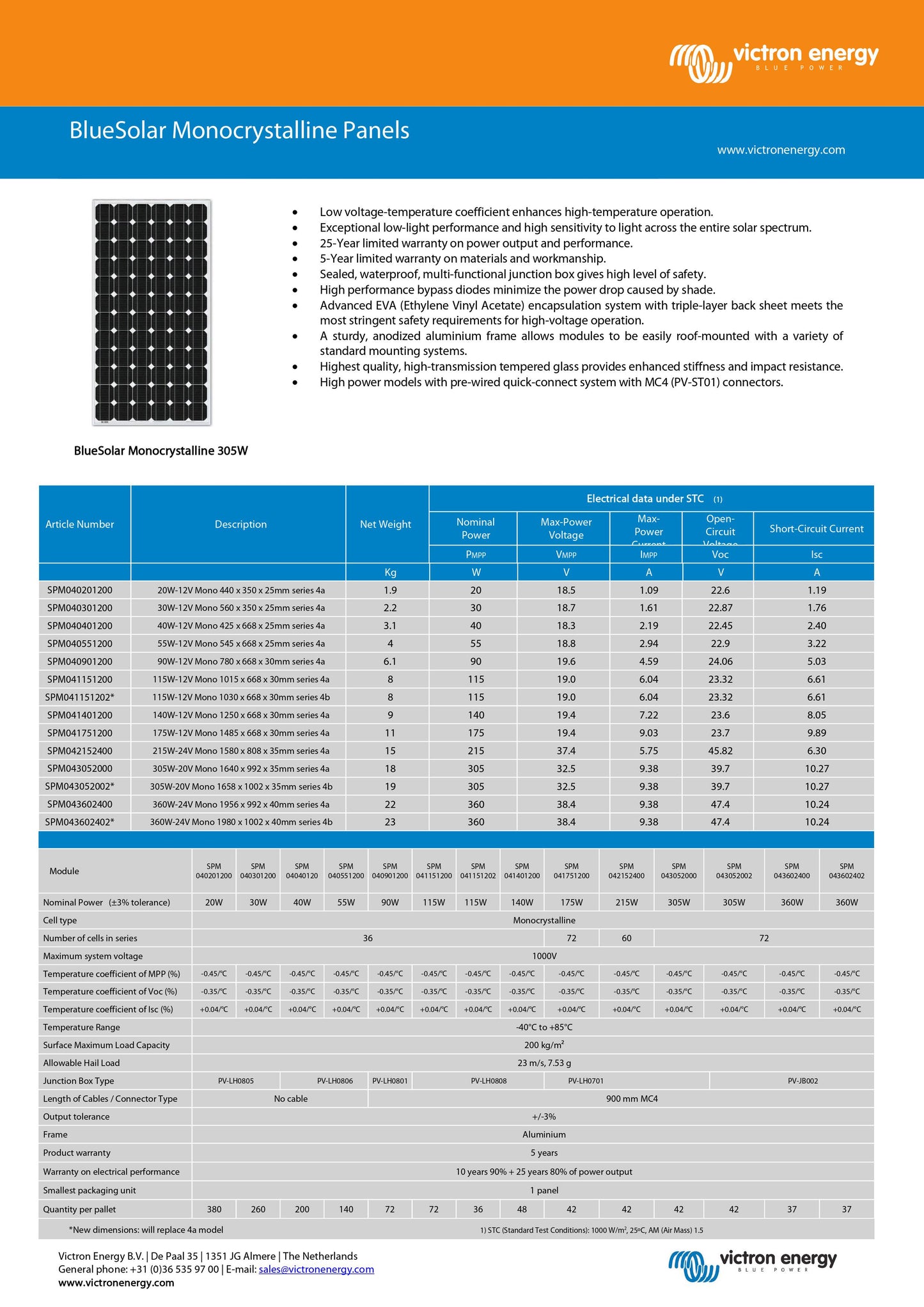

Victron Energy Solar Panel 12V 175W Mono series 4a

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

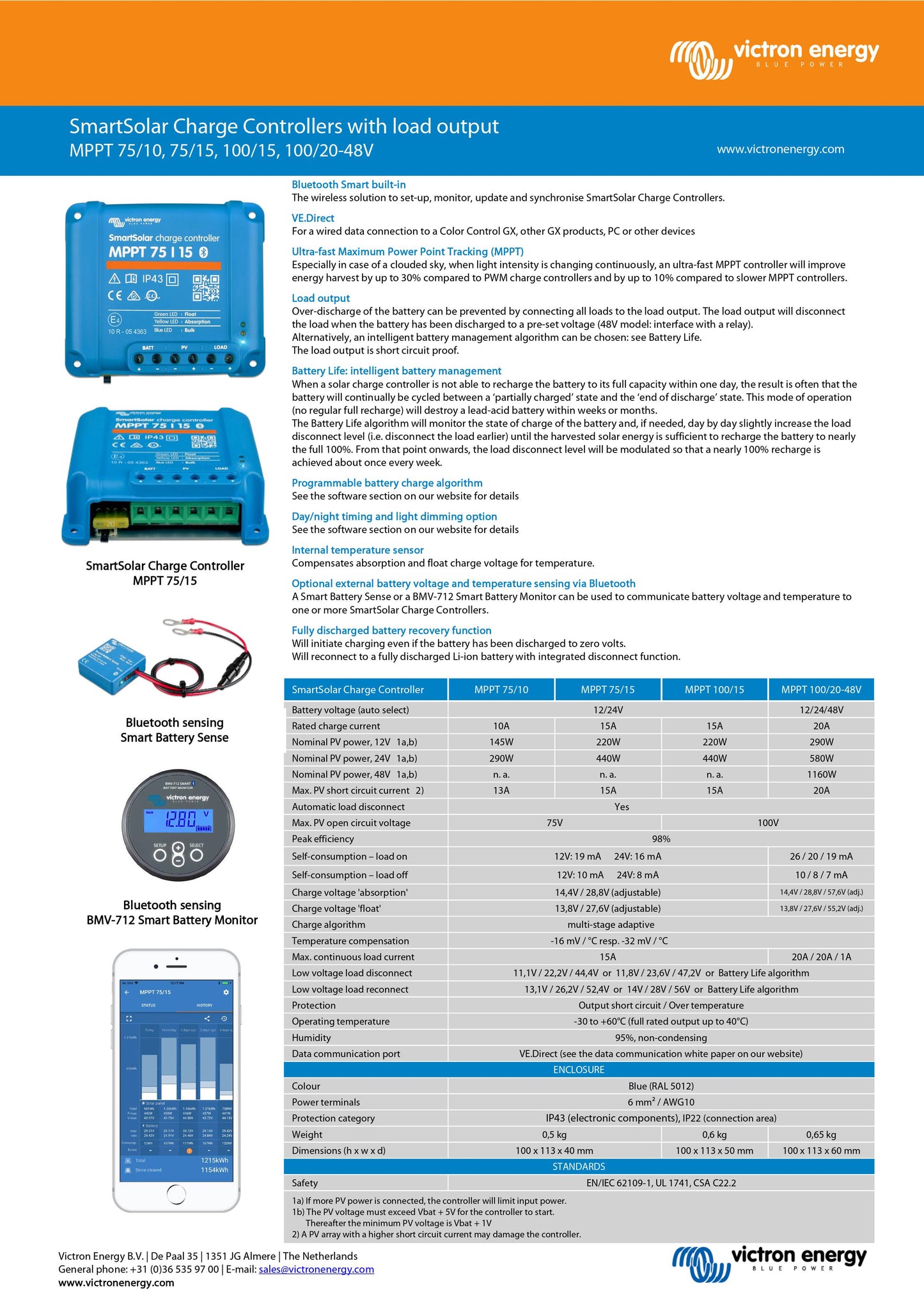

Victron Energy SmartSolar MPPT 75/15

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• Bluetooth Smart built-in
• VE.Direct
• Ultra-fast Maximum Power Point Tracking (MPPT)
• Battery Life: intelligent battery management
• Programmable battery charge algorithm
• Day/night timing and light dimming option
• Internal temperature sensor
• Optional external battery voltage and temperature sensing via Bluetooth
• Fully discharged battery recovery function

Victron Energy Solarcable L=5m/4sqmm MC4-M/F

5m/4spmm MC4-M/F of Solarcable

Z Bracket Mounting Aluminium Fixing Set

These brackets are made from 2mm aluminium

Set Includes:

• 4x Z-Shape Tabbed Solar Panel Brackets
• 8x Stainless Steel Self Tapping Screws
• 4x Stainless Steel Spring Washers
• 4x Stainless Steel Short Bolts
• 4x Stainless Steel Washers
• 4x Stainless Steel Nuts
